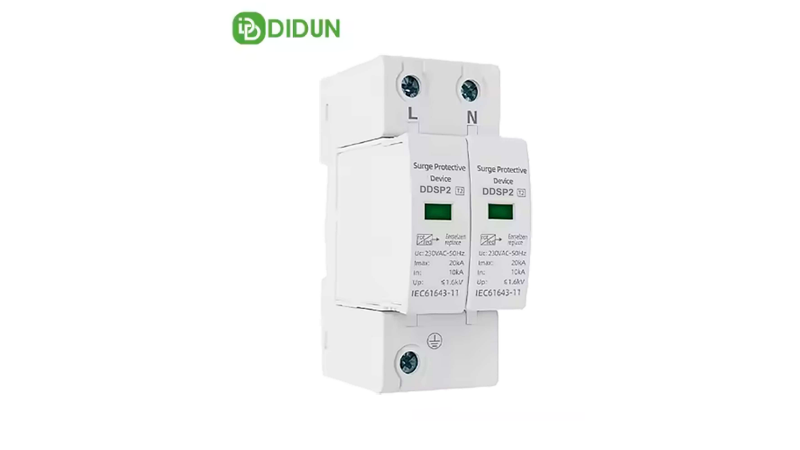

DDSP2

Order

Model	DDSP2
Pole	1P/2P(1P+N)/3P/4P(3P+N)/1P+N-PE/3P+N-PE
SPD Type	Type 2 / Class ii
Technology	Mov(Metal oxide varistors)
Protection Mode(s)	L-PE / N-PE
Line Voltage(a.c.) [Un]	400/230 Volt 50 Hz / 230 Volt 50 Hz
Max.continuous operating voltage (a.c.) [Uc]	265 Volt 50 Hz
Nominal discharge current(8/20µs) [In]	10kA, 8/20 µSec wave form
Max.discharge current(8/20µs) [Imax]	≥ 40kA, 8/20 µSec wave form
Residual Voltage(Ures) [Up]	< 1 kV at Category B3/C1
Clamping Voltage	305 Volt ±10%, with cureent > 100 mA at 50Hz
Response time [tA]	≤25ns
Temporary overvoltage [Ut]	335V \| 440V \| 440V \| 620V \| 335V
TOVs Surge Current	> 5A, 50 Hz, within 0.1 second
Let Through Voltage (TOVs)	< 265 Volt at TOVs Surge Current
Admissible short-circuit current [Isccr]	25kA
Max.backup fuse	63A gL/Gg
Protection level (Up)	≤ 1.5kV / ≤ 1.6kV / ≤ 1.8kV / ≤ 2.0kV
Current	AC System
SPD configuration	Single / Three Phase
Plug Cable	Available
Mounting	35mmDIN rail
Housing Material	PA66 flame retardant
Operting temperature	-40℃-+80℃
Protection rating	IP20
Operating state/fault indication	Red / Green
Remote Signaling	Optional
Wiring for remote signaling	Max 1.5mm solid / flexible
Max.Voltage/Current for remote signaling	250V/0.1A: 125V/0.2A: 75V/0.5A
Made in Country	Chaina
